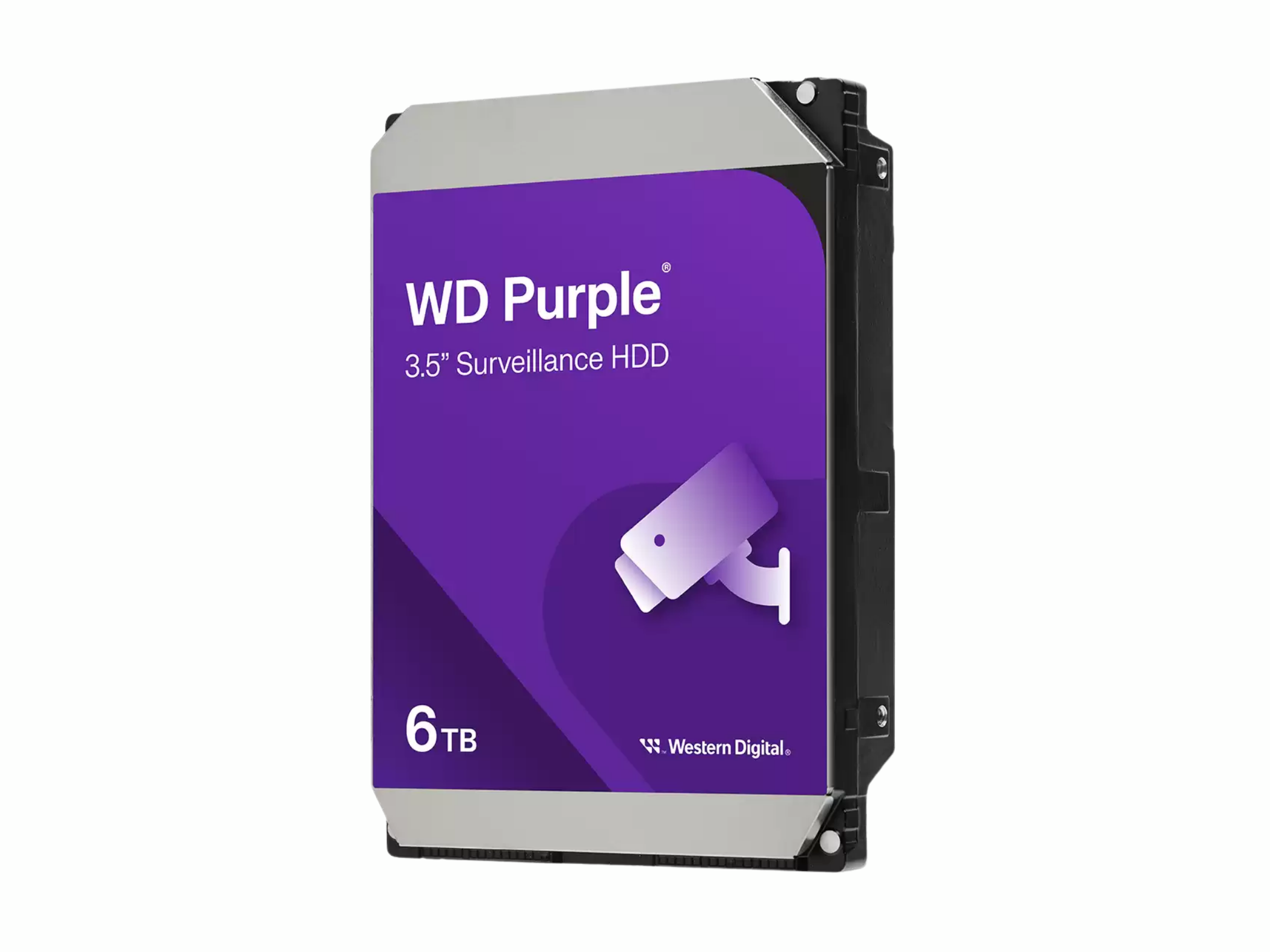

Western Digital Purple 6TB 3.5'' Surveillance Hard Drive, SATA 6 Gb/s, 256MB Cache Size, 5400 Rpm, CMR Recording Technology, Built to Handle Up to 64 Cameras Per Drive | WD64PURZ

WD Purple 6TB Surveillance Hard Drive – 3.5" SATA, CMR, 256MB Cache

The Western Digital WD Purple 6TB Surveillance Hard Drive (WD64PURZ) is purpose-built for 24/7 surveillance recording systems, providing reliable storage for CCTV cameras, DVRs and NVRs. With 6TB capacity, CMR recording technology, 256MB cache and SATA 6 Gb/s connectivity, it is designed to handle the continuous write workloads associated with modern surveillance environments.

Built for Surveillance Systems

WD Purple drives are engineered specifically for mainstream surveillance applications. The drive's AllFrame firmware technology is optimized for write-intensive, low-bit-rate and high-stream-count workloads, helping support continuous surveillance recording.

6TB Storage Capacity

With 6TB of storage, the WD64PURZ provides substantial capacity for storing surveillance footage. Actual recording duration depends on factors such as the number of cameras, resolution, frame rate, compression format, recording schedule and required retention period.

CMR Recording Technology

The drive uses Conventional Magnetic Recording (CMR) technology, making it well suited to sustained write workloads. This is particularly important for surveillance systems that continuously record multiple video streams.

Support for Up to 64 HD Cameras

The WD64PURZ is designed to support surveillance systems with up to 64 HD cameras, subject to the capabilities and configuration of the overall surveillance system. It also supports up to 16 drive bays, making it suitable for scalable storage environments.

256MB Cache and SATA 6 Gb/s

The 256MB cache helps support demanding storage workloads, while the SATA 6 Gb/s interface provides a widely compatible connection for compatible DVR, NVR and PC systems. WD specifies transfer rates of up to 175MB/s for this model.

Designed for Continuous Surveillance Workloads

WD Purple drives are designed for surveillance environments and support a workload rate of up to 180TB per year. The drive also incorporates features such as RV sensors and tarnish-resistant components on the WD64PURZ specification.

Specification
